Camera Remote Bluetooth Remote Controller
ESP32 MINI
Version Information
- Android app version 1.1.5 required. (App released at Jan. 2022)

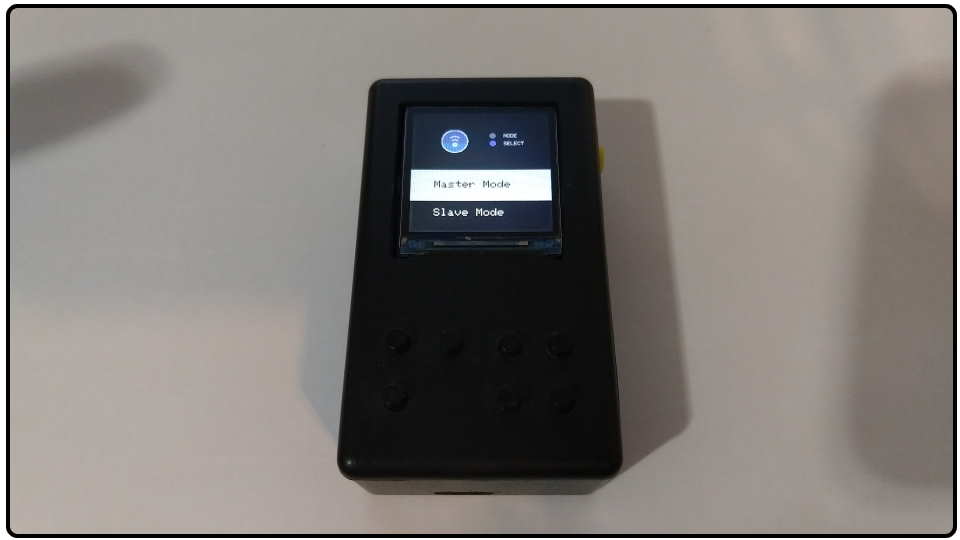

- Dual Connection Menu Mode: Master and Slave modes
- Master mode: remote controller initializes connection to the remote android camera.
- Slave mode: remote android camera initializes connection to the remote controller.
- Released: Jan. 2022
Software for Programming
Parts
-
- ESP32 D1 Mini Microcontroller
- Color Mode: ST7789 TFT Color Display

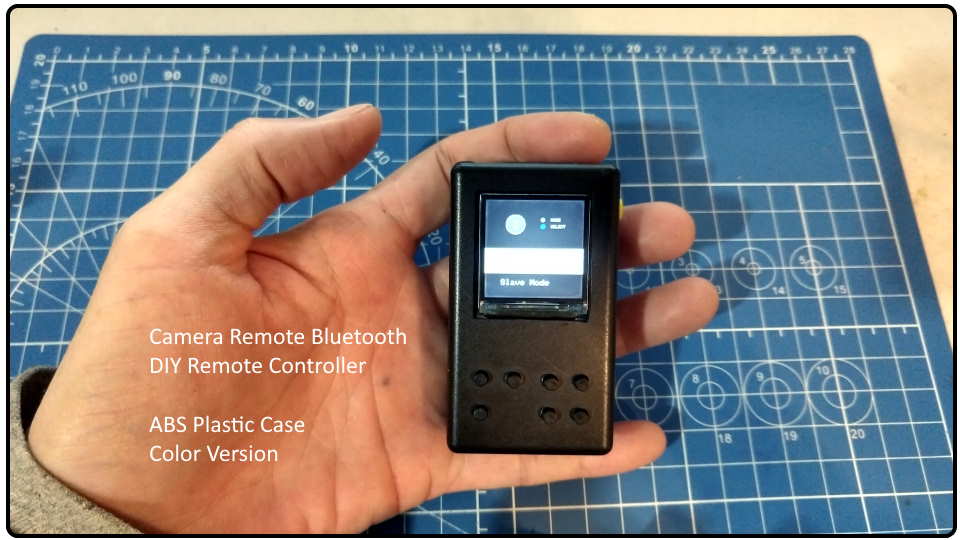

- ABS Plastic Electrical Project Case, 2.83 x 1.65 x 0.91 inch (72x42x23 mm)
- Button Switches: Momentary Tactile Push Button Switch, 6x6x8 mm
- Power Switch: SPST Tactile On Off Push Button Switch
- Optional: Rechargerable Lithium Battery, 3.7V
- Optional: Lithium Li-ion Battery Charger Module, Output 5V

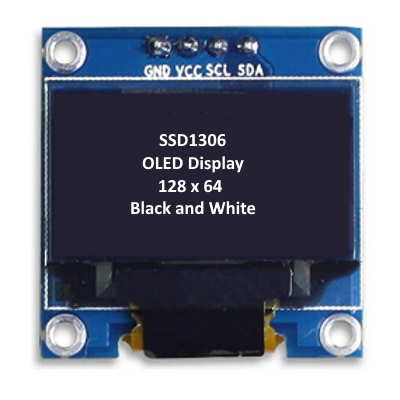

- Optional: Mono Color: SD1306 B/W Display

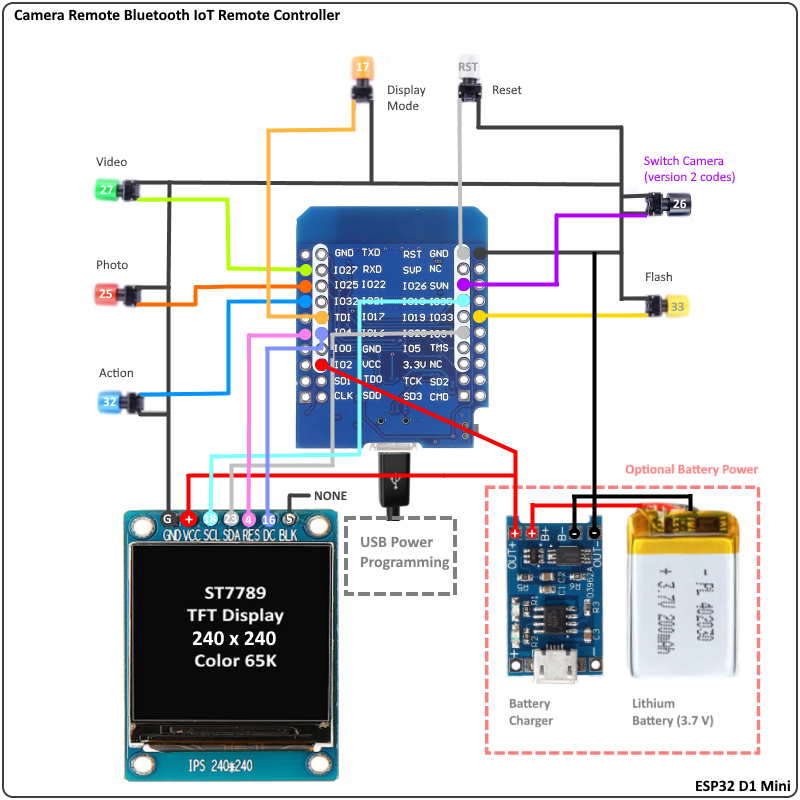

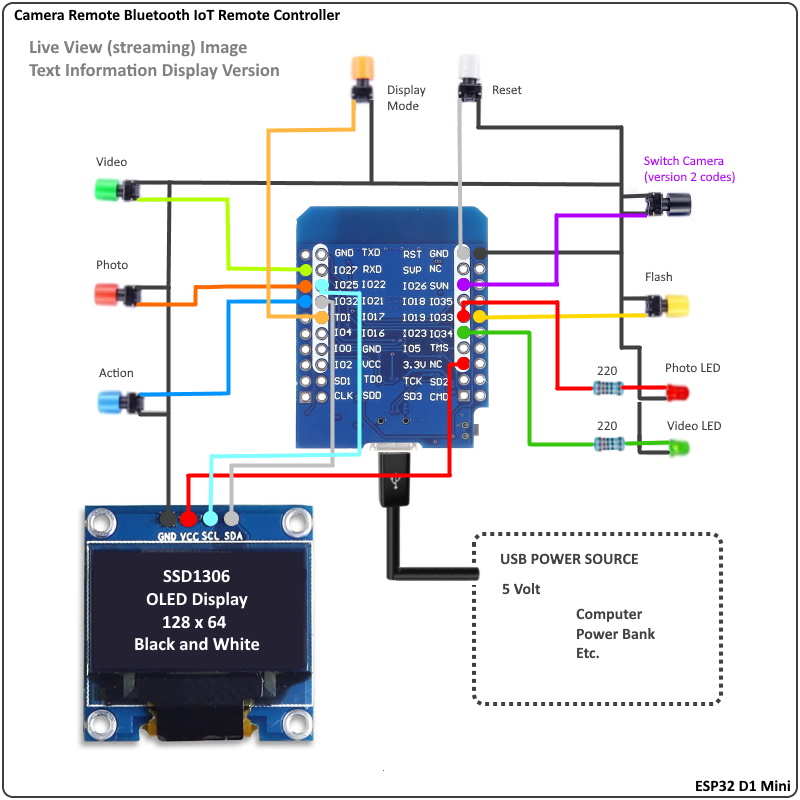

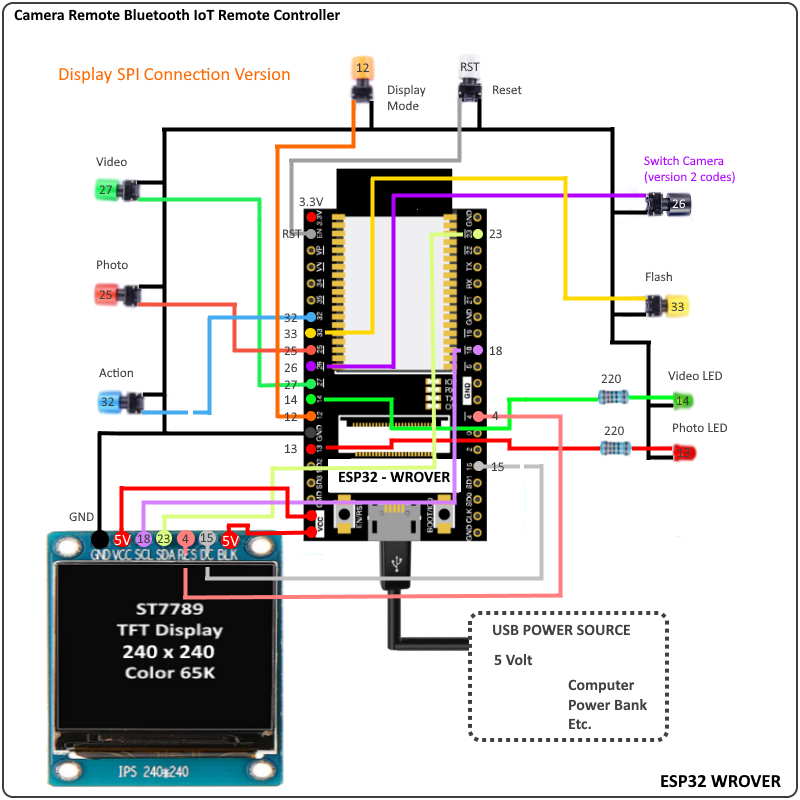

Codes and Schematic
