Camera Remote Bluetooth Remote Controller
ESP32 MINI SLIM COLOR (3 Buttons)
Version Information

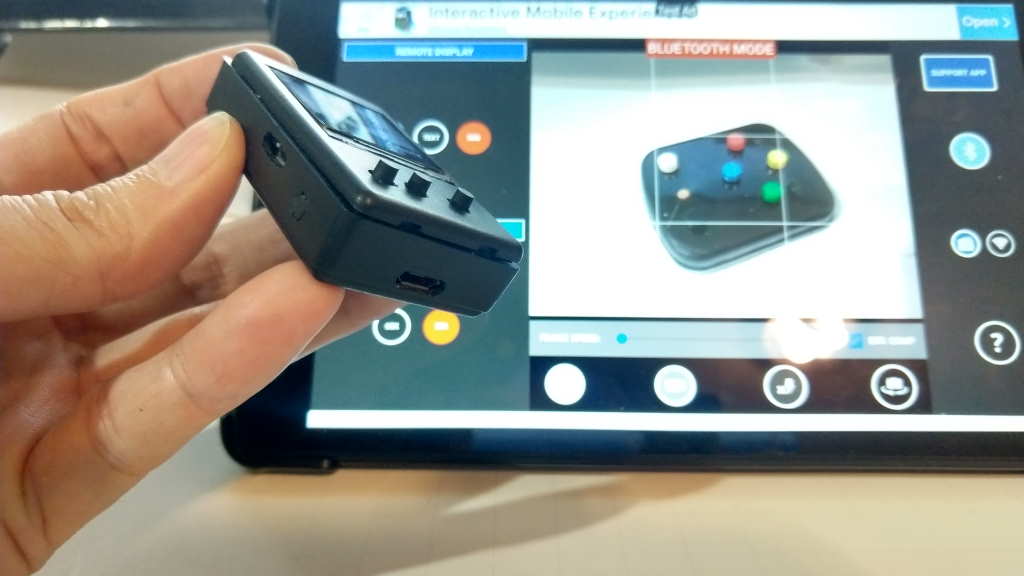

- Mini and slim size remote controller.
- Three (3) buttons mode with MENU options.
-

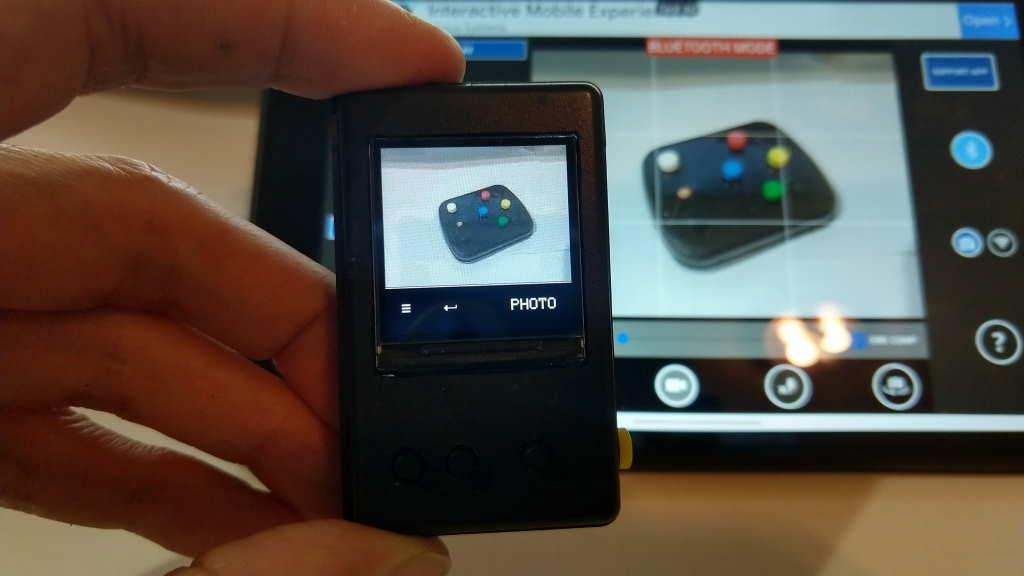

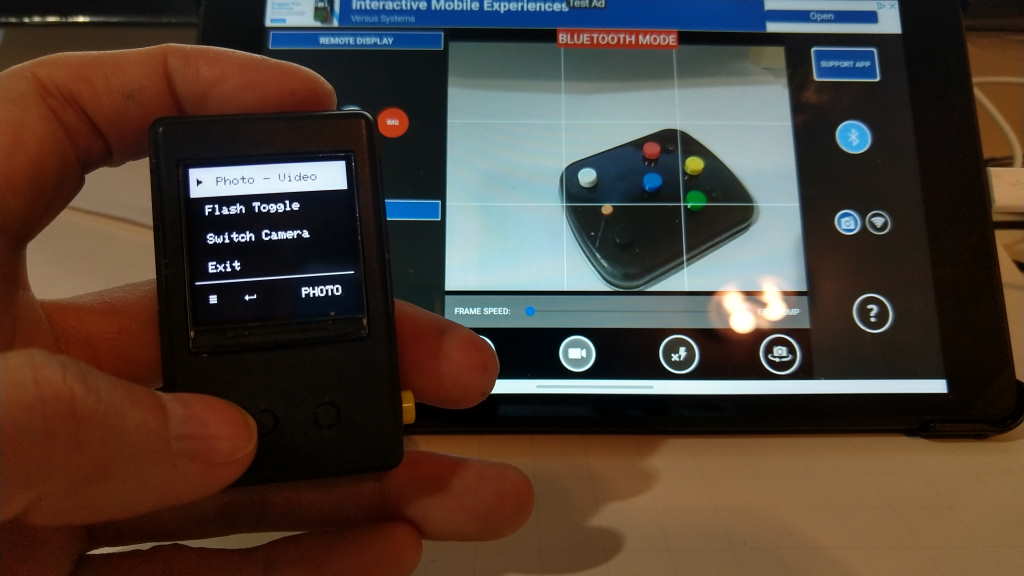

Menu Options
- Change Photo and Video Mode
- Toggle Flash Mode
- Switch Camera (Front and Rear)
- Easy to connect remote android camera from controller. (Same as Master Mode of older codes.)
-

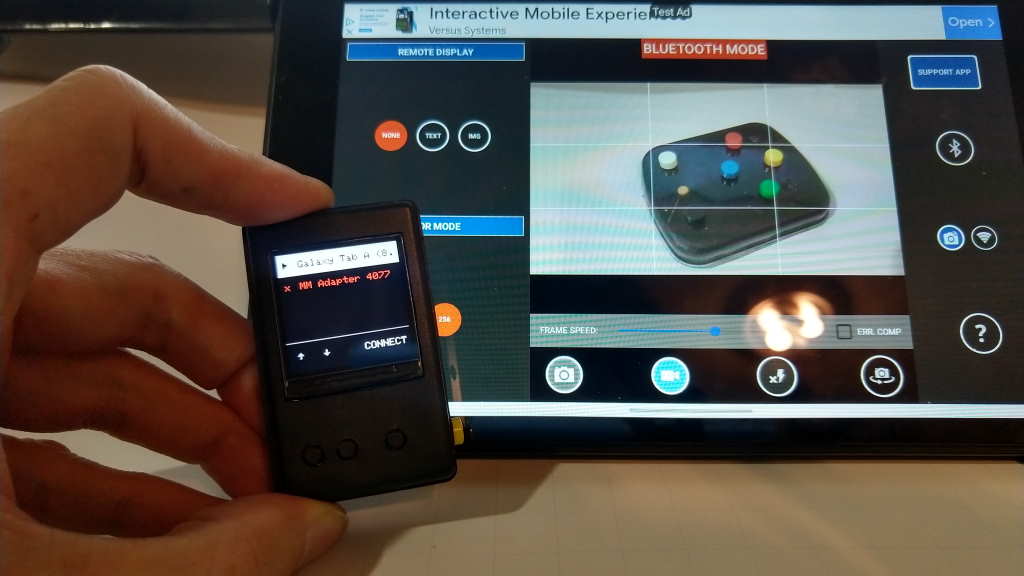

Connection Modes
- Search remote android cameras
- Connect remote cameras
- Android app version 1.1.8 or older recommanded. (older version apps are compatible)
Software for Programming

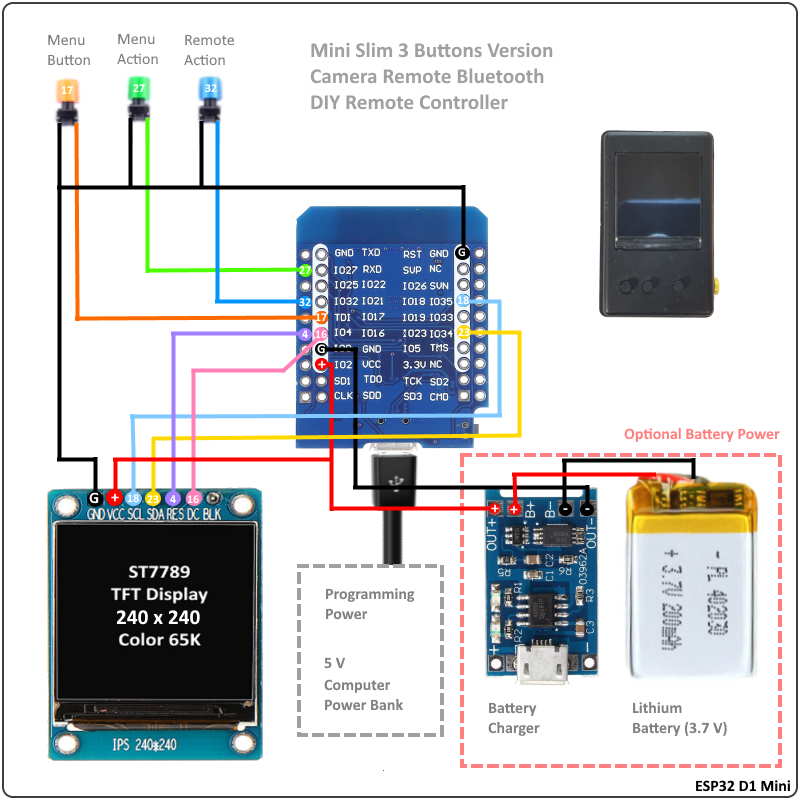

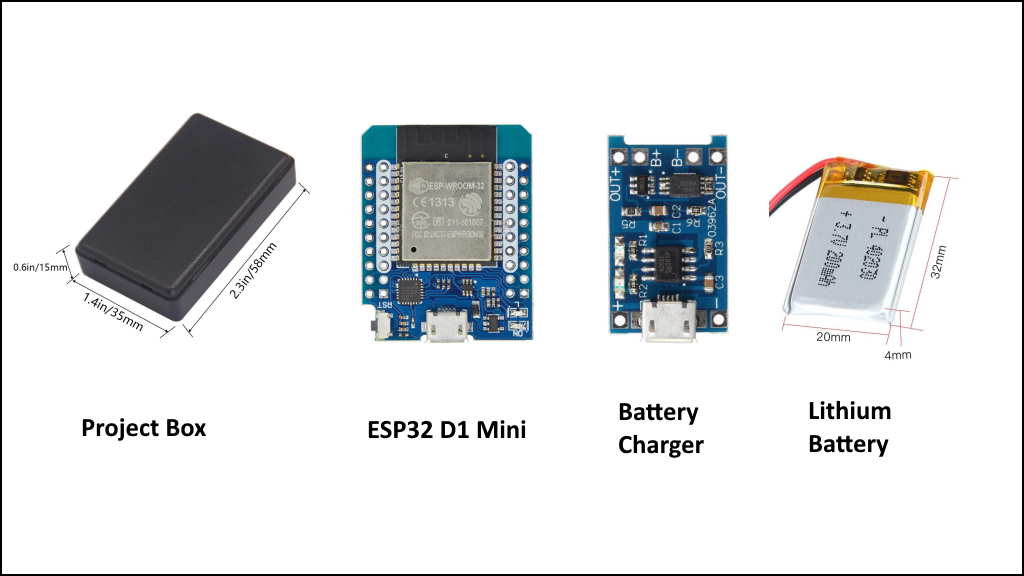

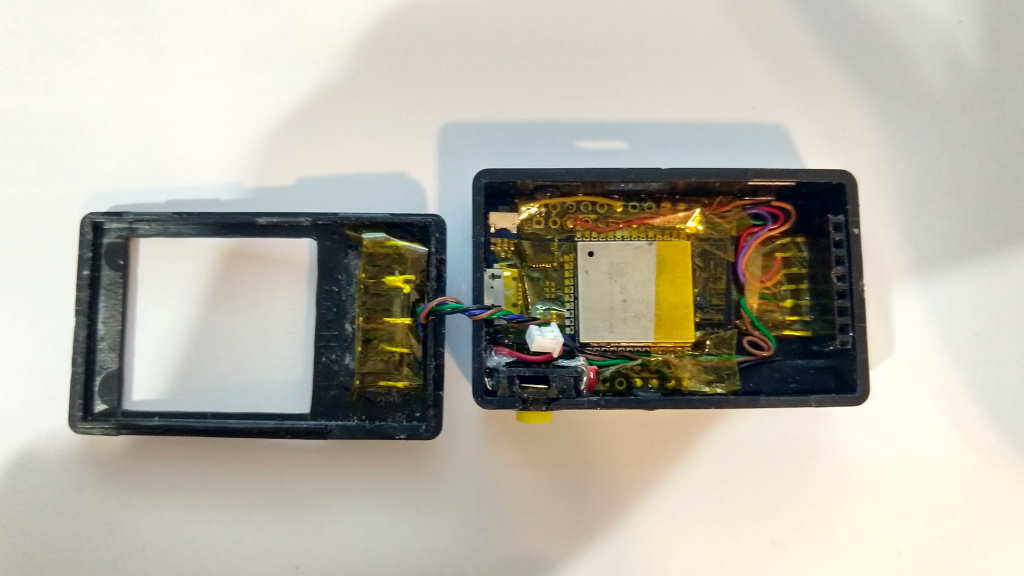

Parts
-
- ESP32 D1 Mini Microcontroller

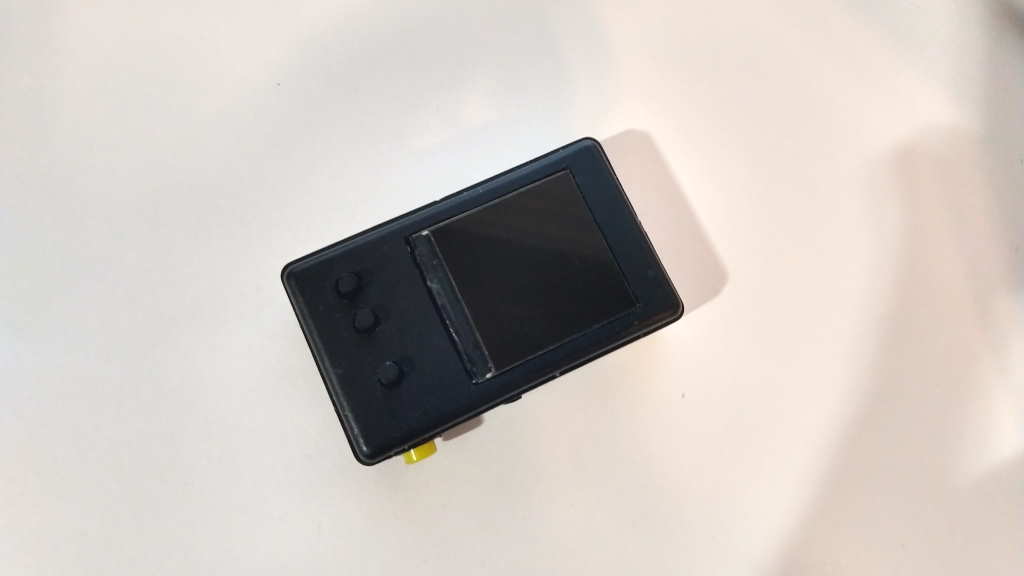

- ABS Plastic Project Box

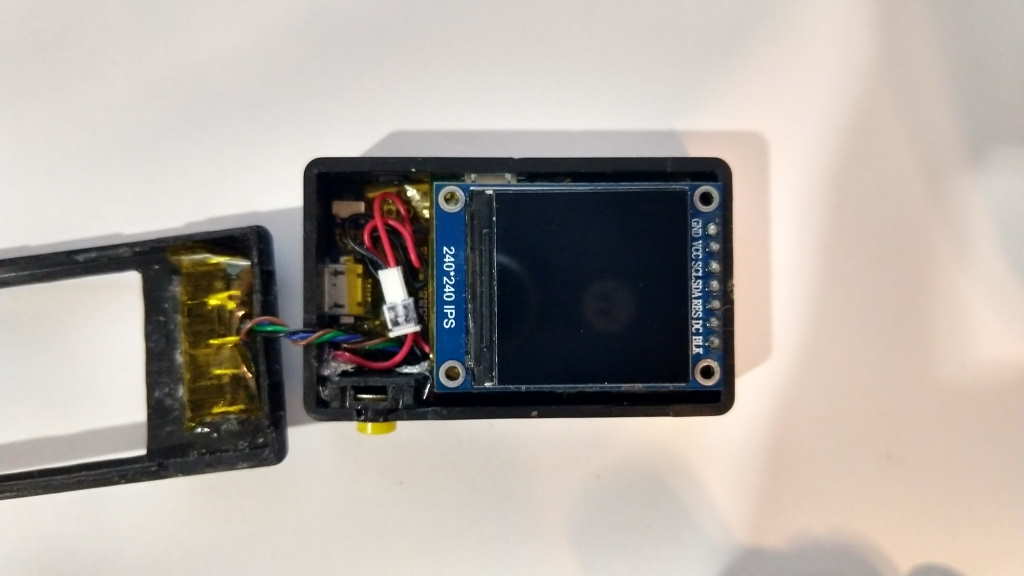

- ST7789 TFT Color Display
- Button Switches: Momentary Tactile Push Button Switch, 6x6x8 mm
- Power Switch: SPST Tactile On Off Push Button Switch

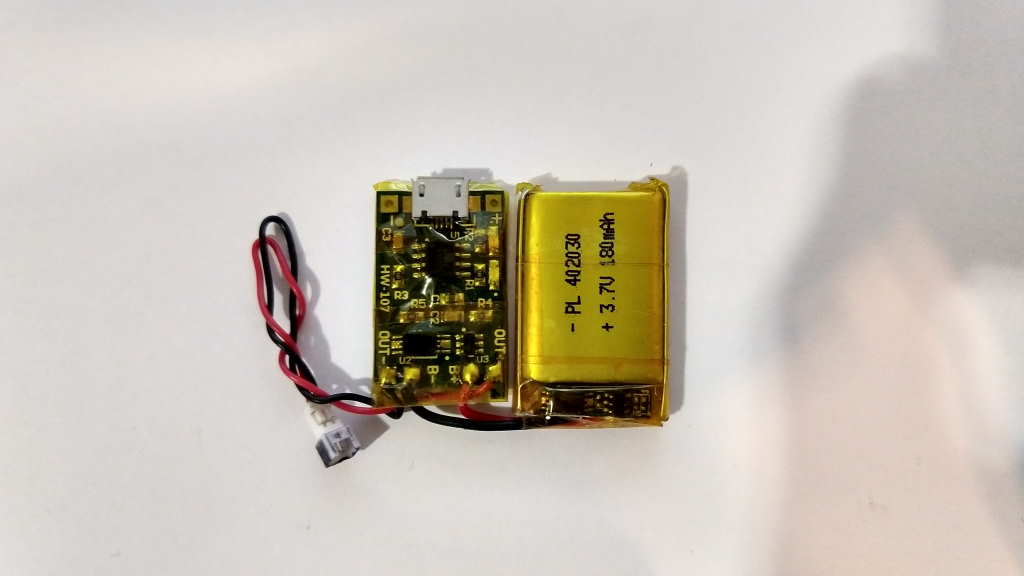

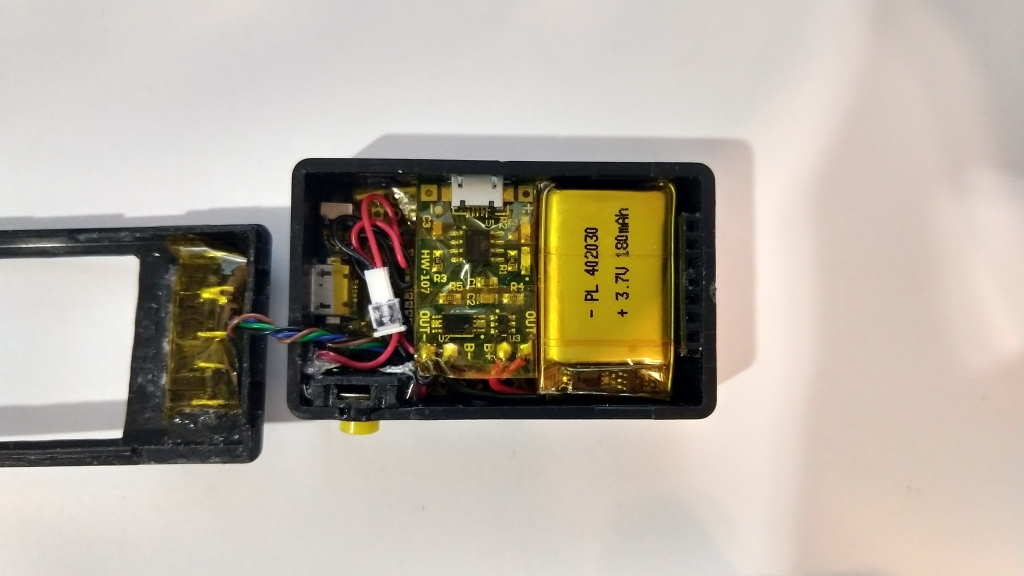

- Optional: Rechargerable Lithium Battery, 3.7V
- Optional: Lithium Li-ion Battery Charger Module, Output 5V
