Camera Remote Bluetooth Remote Controller
ESP32 BLUETOOTH MODE - MENU VERSION (dual connection)
ESP32 Mini Microcontroller
ESP32 Wrover Microcontroller
ST7789 TFT Color Display
SD1306 B/W Display
VERSION INFORMATION
- Android app version 1.1.5 required. (App released at Jan. 2022)
- Dual Connection Menu Mode: Master and Slave modes
- Master mode: remote controller initializes connection to the remote android camera.
- Slave mode: remote android camera initializes connection to the remote controller.
- Released: Jan. 2022
- For more information, see the Version History page.

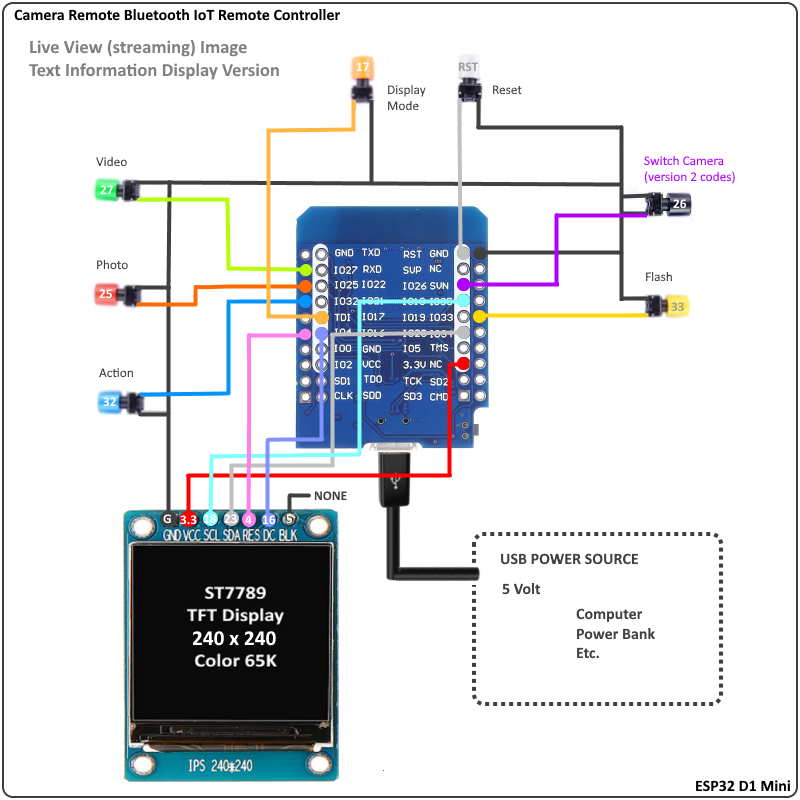

SCHEMATIC
CODES DOWNLOAD
ESP 32 Mini Wroom Module with Color Display version
CameraRemoteBluetoothIot_COLOR_WROOM_Jpeg_Menu.zip
ESP 32 Wrover Module: see the io pin connection from codes, some of display pin connections are slightly differ from Wroom module.
CameraRemoteBluetoothIot_COLOR_WROVER_Jpeg_Menu.zip
ESP 32 Mini Wroom Module with B/W Display version
CameraRemoteBluetoothIot_BW_WROOM_I2C_Menu.zip
LIBRARIES
- See codes.
ESP32 BLUETOOTH MODE COLOR DISPLAY
ESP32 Mini Microcontroller
ST7789 TFT Color Display
VERSION INFORMATION
- Android app version 1.1.4 required.
- New enhanced remote view streaming.
- Manual frame speed option.
- Network error correction option; adjusting network speed on some android devices for network data congestion when remote images are not showing.
- Released: Dec. 2021

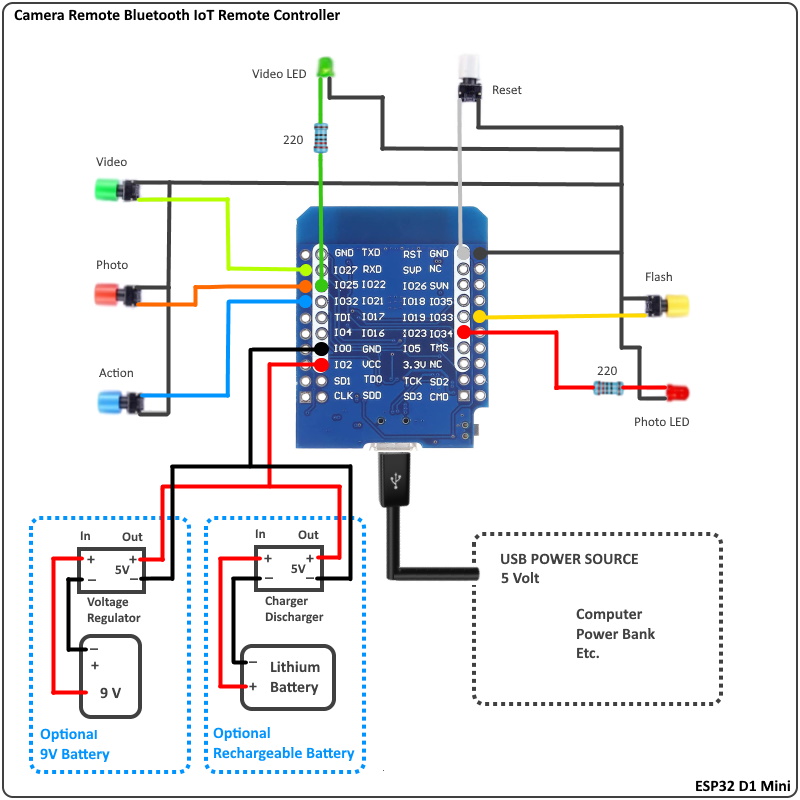

SCHEMATIC
ESP32 WIFI MODE COLOR DISPLAY
ESP32 Mini Microcontroller
ST7789 TFT Color Display
VERSION INFORMATION
- Android app version 1.1.4 required.
- New enhanced remote view streaming.
- Manual frame speed option.
- Network error correction option; adjusting network speed on some android devices for network data congestion when remote images are not showing.
- Released: Dec. 2021
SCHEMATIC
ESP32 BLUETOOTH MODE B/W DISPLAY
ESP32 OLDER CODES (and No Display Modes)
VERSION INFORMATION
- Please use newer version codes and android app for display and enhanced mode versions.
SCHEMATIC
CODES DOWNLOAD
CameraRemoteBluetoothIot_COLOR_WROOM.zip (ESP32, Color Display, Android app version 1.1.2)
CameraRemoteBluetoothIot_BW.zip (ESP32, B/W Display, Android app version 1.1.2)
CameraRemoteBluetoothIot_v2.zip (ESP32, No Display, Android app version 1.1.1)
CameraRemoteBluetoothIot.zip (ESP32, No Display, Android app version 1.1.0)
LIBRARIES
- See codes.
